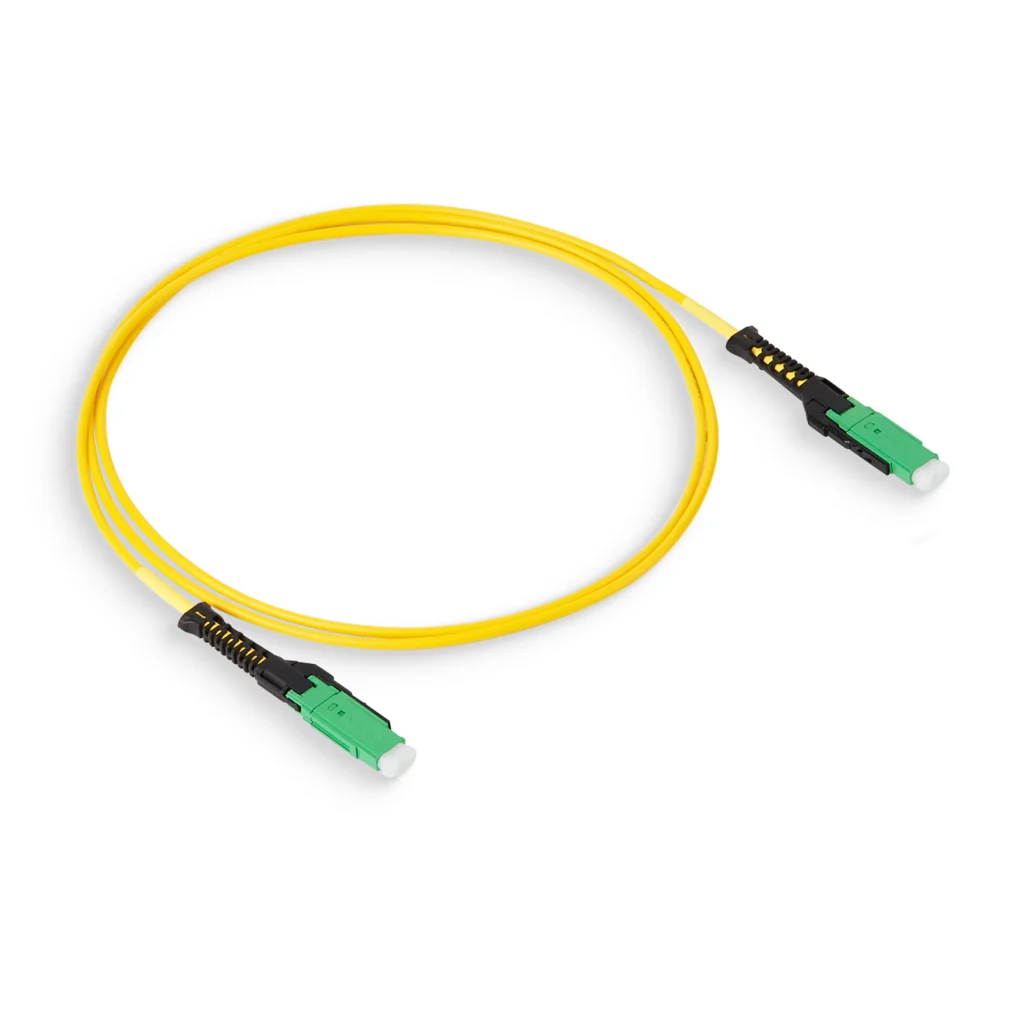

OEM MDC APC duplex patch cord

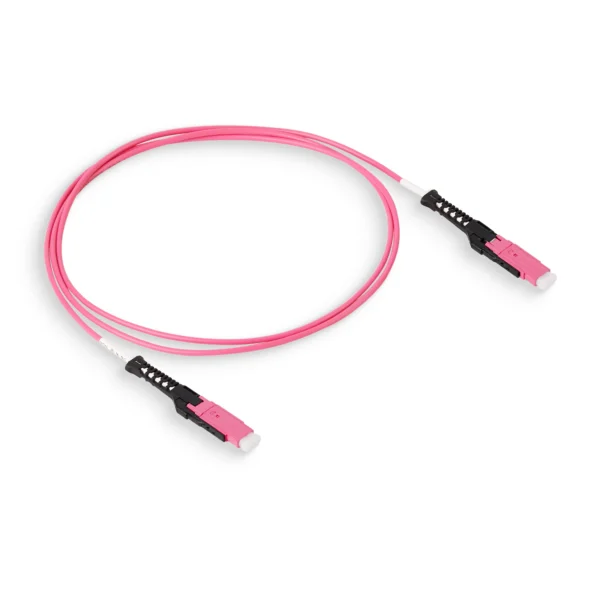

MDC APC duplex patch cord MDC/PC-MDC/PC, Duplex 2F, OM4 Multimode, OFNP, 2.0mm Polarity A-B, VSFF Assemblies

SKU 488007 Category Tags , , , , , , , , , , , ,
The MDC APC duplex patch cord is engineered for next-generation 400G to 800G high-density data center infrastructures, our MDC/APC duplex VSFF patch cords deliver ultra-compact, high-performance optical cross-connect solutions for modern hyperscale data centers, HPC clusters, and enterprise core network deployments. Adopting the advanced Very Small Form Factor (VSFF) design, the MDC connector integrates two precision 1.25mm ferrules within a miniaturized housing, providing up to 3x higher port density compared to traditional duplex LC connectivity. This space-saving architecture maximizes rack utilization, reduces cabling congestion, and lowers overall infrastructure investment for high-bandwidth network environments.

Featuring an innovative push-pull boot structure and tool-free polarity reversal capability, these MDC duplex patch cords enable fast, flexible, and error-free on-site deployment. Technicians can easily adjust polarity without additional tools, greatly improving cabling efficiency and simplifying routine maintenance in densely populated patch panels and distribution frame systems. Fully compatible with mainstream SFP-DD and QSFP-DD/OSFP high-speed transceivers, the assemblies support direct front-panel interconnection for 10G, 40G, 100G, 200G, 400G, and 800G transmission systems, perfectly matching the bandwidth upgrade demands of AI computing centers and cloud hyperscale facilities.
This patch cord adopts premium G.657.A1 bend-insensitive single-mode fiber with a minimum bending radius of only 10mm, effectively preventing signal attenuation caused by tight bending in cabinet wiring and complex routing scenarios. It ensures stable, low-loss optical performance with insertion loss ≤0.3dB and return loss ≥65dB, delivering consistent and reliable long-term transmission quality. The 2.0mm LSZH flame-retardant jacket provides excellent fire resistance, low smoke, and halogen-free environmental performance, complying with strict data center safety standards and suitable for indoor enclosed cabinet and plenum-grade deployment environments.
Manufactured under official US Conec licensing and strictly compliant with TIA-568, Telcordia GR-326, IEC 61754, and RoHS industrial specifications, every unit undergoes 100% factory optical testing to guarantee standardized quality and excellent interchangeability. Supporting 500 times repeated plugging and unplugging, the connectors maintain stable mechanical and optical performance for long-term commercial operation. Available in full fiber series including OS2 single-mode and OM3/OM4/OM5 multimode options, with customizable hybrid connector configurations to adapt to mixed new and legacy network upgrades.
Ideal for high-density rack cross-connections, server room interconnections, AI HPC clusters, and enterprise backbone networks, our certified MDC VSFF patch cords balance ultra-high density, superior transmission performance, and long-term operational reliability, providing cost-effective, future-proof optical wiring solutions for next-generation high-speed network construction.
  • Two 1.25mm ferrules in one connector housing
  • Compatibility with transceivers like QSFP-DD or OSFP
  • Simple polarity change
  • Telcordia GR-326 and TIA-568 compliant
  • Various fiber types and wavelengths, typical 9/125um single-mode, 62.5/125nm multimode (OM1), and 50/125nm multimode (OM2, OM3, OM4, and OM5)



Contact Supplier
Edit Content

Description

The MDC duplex patch cord is engineered for cross‑connect applications between patch panels, distribution boxes and optical networking hardware. Built around the compact MDC connector with push‑pull boot and simple polarity reversal capability, these patch cords deliver high deployment efficiency and maximum field flexibility. They support direct interconnection with SFP‑DD transceivers out‑of‑the‑box.
Available in single‑mode OS2 and multimode OM3 / OM4 / OM5 constructions, including bend‑insensitive G.657.A fiber variants. Hybrid cable assemblies mating with conventional single‑fiber connector interfaces are also available to satisfy mixed‑infrastructure deployments.

Specifications

Connector A MDC/PC Connector B MDC/PC
Fiber Mode MM Wavelength 850
Fiber Count 2F Fiber Type MM OM4
Polarity A-B Min. Bend Radius 7.5mm
Cable OD 2.0mm Cable Jacket OFNP
Return Loss ≥20dB Cable Structure Φ250um Bare Fiber
Attenuation@850nm 3.0dB/km Insertion Loss IL≤0.2dB
Storage Temperature -40℃ ~ + 75℃ Attenuation@1300nm 1.0dB/km
Installation Tensile Strength 60/100N Operating Temperature -10℃ ~ +60℃
Connctor Durability 500 times Cable Tensile Strength(Long/Short) 60/100N

Compliance

IEC 61754 Series/ IEC 61753-1/ ISO/IEC 11801 Compliant/ RoHS

Features

• Compact MDC duplex connector enabling up to 3 × higher cabling density compared to LC

• DirectConec™ push-pull boot for easy insertion and removal in high-density environments

• Supports simple polarity reversal without exposing or twisting fibers

• Compliant with IEC 61753-1 Grade B random mating performance

• PC / UPC / APC end face polish options

• 100% factory terminated and tested

• Flexible length and configuration options



Applications

• Data centers and high-speed interconnect systems (200G / 400G / 800G)

• Storage area networks (Fibre Channel)

• Parallel optics and high-density cabling architectures

• Interconnects within optical equipment and modules

• Centralized cross-connect and distribution areas

• Trunk cabling to zone cabinets, switches, and servers

Edit Content
≤0.2dB IL
10G/40G/100G Networks
