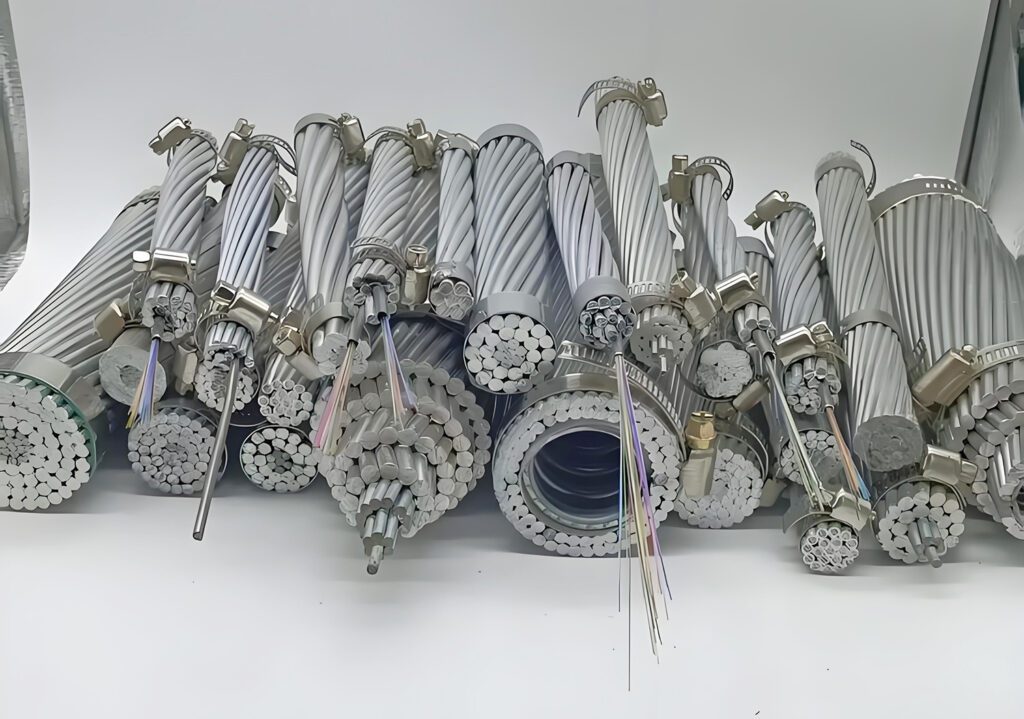

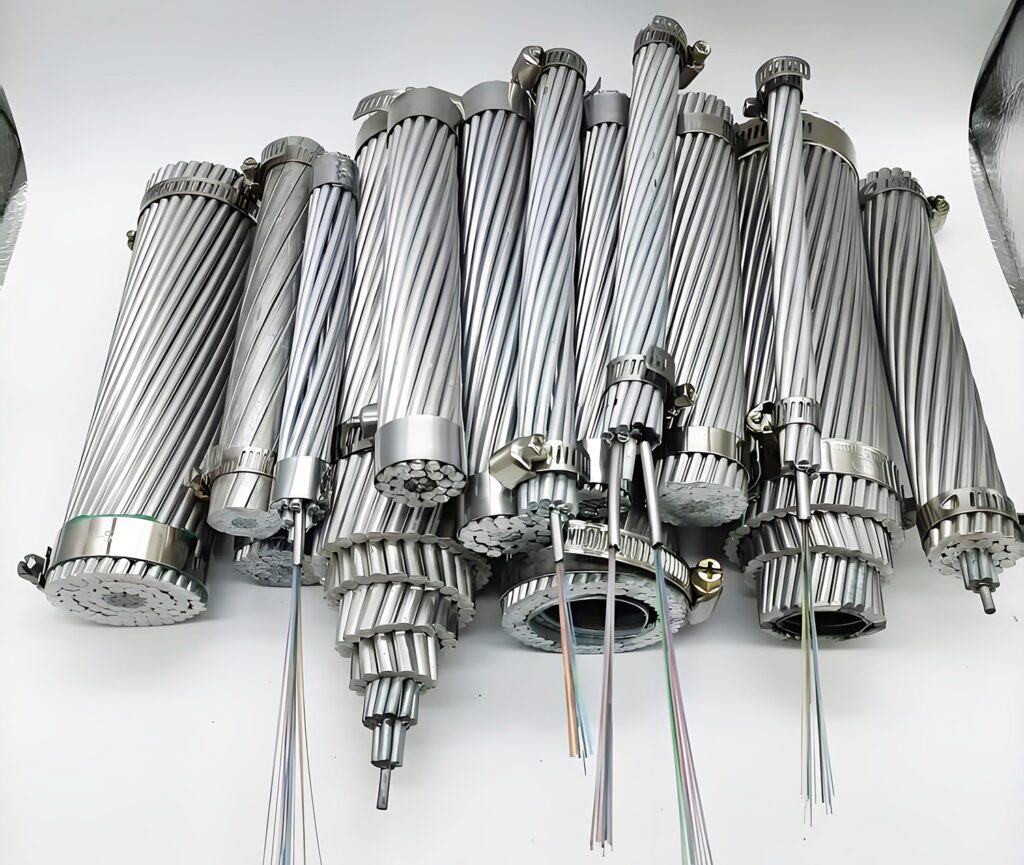

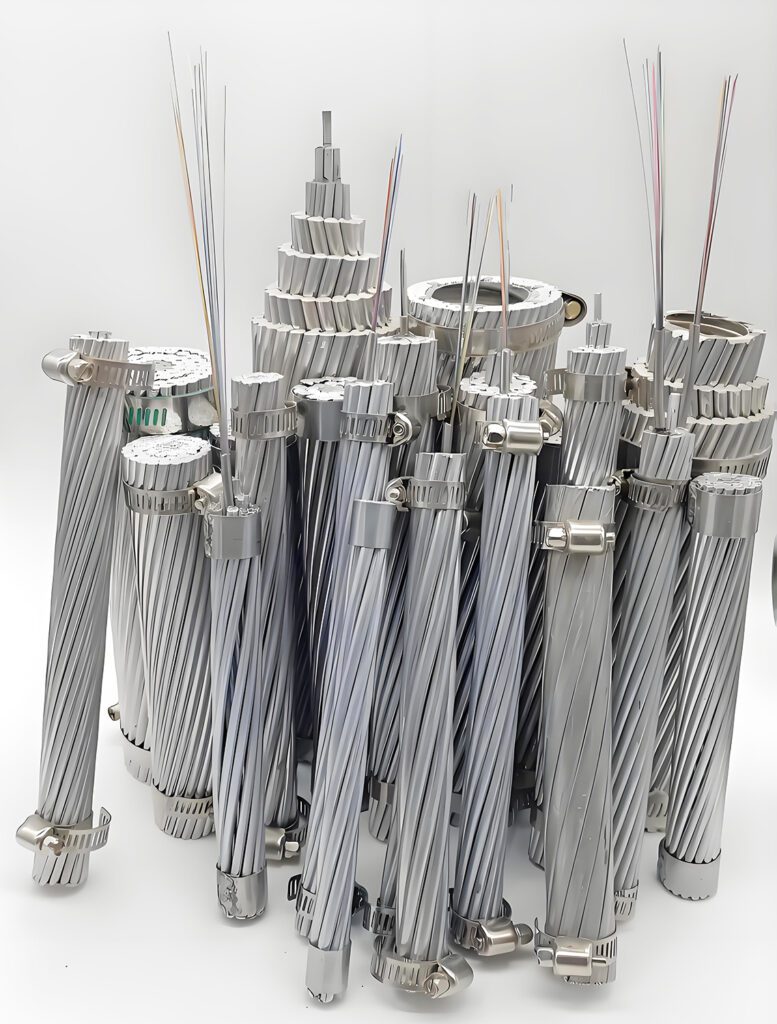

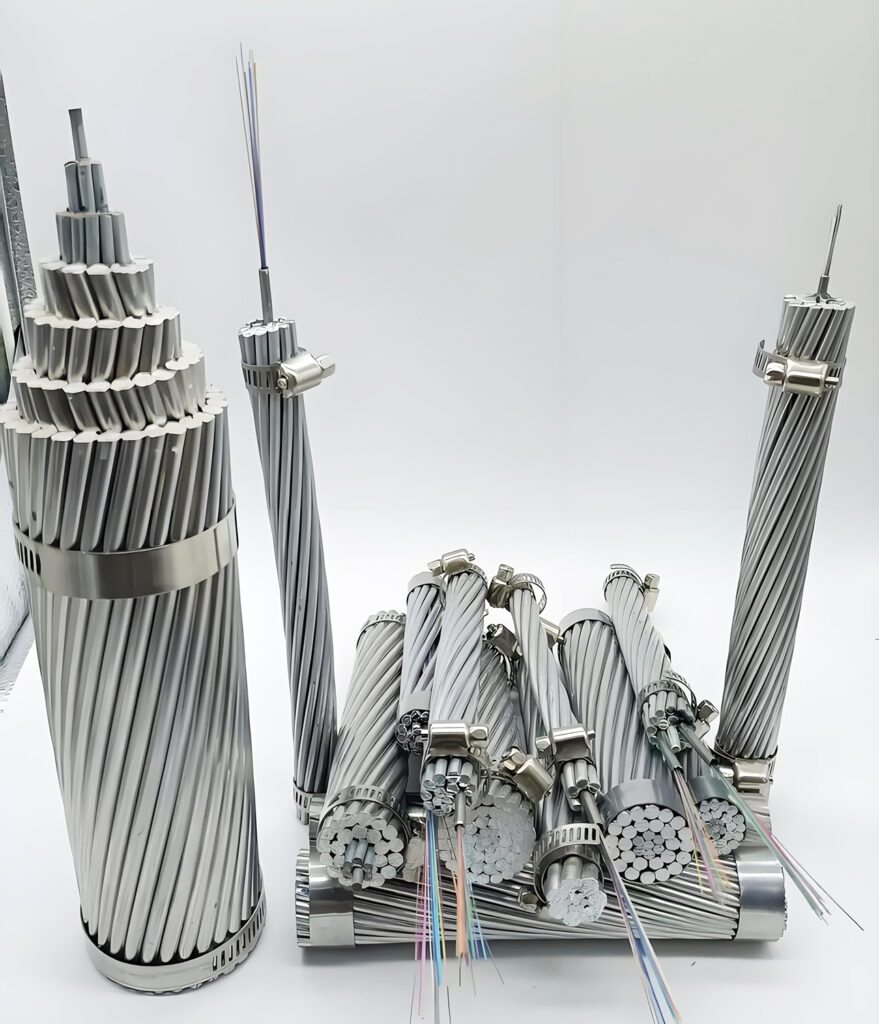

(OPGW) Optical Fiber Composite Overhead Ground Wire

OPGW is a overhead ground cable with built-in fibers, owing mutual functions of overhead ground cable and optical communication. It’s mainly applied to communication lines which cross 110kV, 22kV, 500kV, 750kV and new built aerial high voltage power transmission system. It also can be used to replace existed ground cable in old aerial high voltage power transmission system, and increasing new optical communication lines, transporting short circuit electricity and protecting it from thunder.

Optical Ground Wire (OPGW) – The Ultimate Solution for Utility Communications

Optical Ground Wire, or OPGW, is a cutting-edge technology that integrates both grounding and fiber optic communication capabilities into a single overhead cable. Designed for high-voltage transmission lines ranging from 110kV to 750kV, OPGW offers a versatile and cost-effective solution for modern utility communication needs.

Characteristics

• Stainless steel tubes filled with hydrophobic gel provide the protection and support of the optical fibres
• Accurate process control ensures good mechanical and temperature performances
• Larger diameter, larger fibre count
• Stable structure and high reliability
• High tensile strength and large short time current capacity to reach optimum balance of mechanical and electrical properties

Optical Fibre Characteristics

	Attenuation				Bandwidth		Polarization Mode Dispersion
	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Individual Fibre	Design Link Value (M=20, Q=0.01%)
G652D	—	—	≤0.35dB/km	≤0.21dB/km	—	—	≤0.20ps/ km	≤0.1ps/ km
G655	—	—	—	≤0.22dB/km	—	—	≤0.20ps/ km	≤0.1ps/ km
50/125μm	≤3.0dB/km	≤1.0dB/km	—	—	≥600MHz.km	≥1200MHz.km	—	—
62.5/125μm	≤3.5dB/km	≤1.0dB/km	—	—	≥200MHz.km	≥600MHz.km	—	—

Constructions and Performance

	Classification	Material	Value
Construction	Optical Fibre	G652D/G655 etc.	2 – 144
	Protection Tube	Stainless steel tube	1.5 – 6mm
	Stranded Line	AS wire/AA wire/Al Rod	1.5 – 6mm
	Max. Diameter		30mm
	Max. Cross Section		500mm2
Characteristic	According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
	Max. Tensile Strength (RTS ) (kN)		700
	Max. Crush Strength（N/100mm）		3000
	Max. Short Current Capacity (40℃ to 200℃)(kA2s)		2000
	Min. Bending Radius (Dynamic)		20D
	Min. Bending Radius (Static)		15D
Environment Performance	Installation (℃)		-10 to +50
	Transportation and Operation (℃)		-40 to +65

**Note: D is cable diameter.

Specific Type and Technical Data

No.	Technical Data
	Product Type	Structure Type	Max. Fibre Count	Section of AS Wire (mm2)	Diameter （mm）	Cable Weight (kg/km)	Rate Tensile Strength （kN）	20℃DC Resistance （Ω/km）	Short Time Current Capacity （40-200℃ kA2.s）
1	OPGW-48B1.3-90- [112;45]	1/2.6/20AS＋4/2.5/20AS＋ 11/2.8/20AS, Optical Unit 2/2.5	48	≈90	13.2	≤641	≥112	≤0.98	≥45
2	OPGW-48B1.3-90- [57;67]	1/2.6/40AS＋4/2.5/40AS＋ 11/2.8/40AS, Optical Unit 2/2.5	48	≈90	13.2	≤457	≥57	≤0.52	≥67
3	OPGW-24B1.3-100-[118;50]	1/2.6/20AS＋5/2.5/20AS＋ 11/2.8/20AS, Optical Unit 1/2.5	24	≈100	13.2	≤674	≥118	≤0.93	≥50
4	OPGW-24B1.3-100-[60;74]	1/2.6/40AS＋5/2.5/40AS＋ 11/2.8/40AS, Optical Unit 1/2.5	24	≈100	13.2	≤479	≥60	≤0.49	≥74
5	OPGW-24B1.3-110-[133;63]	1/2.6/20AS＋5/2.5/20AS＋ 10/3.2/20AS, Optical Unit 1/2.5	24	≈110	14	≤760	≥133	≤0.83	≥63
6	OPGW-24B1.3-110-[140;68]	1/2.8/20AS＋5/2.7/20AS＋ 11/3.05/20AS, Optical Unit 1/2.6	24	≈110	14.3	≤791	≥140	≤0.80	≥68
7	OPGW-24B1.3-110-[67;95]	1/2.9/20AS＋5/2.8/20AS＋ 12/2.8/AA , Optical Unit 1/2.7	24	≈37 ≈74(AA)	14.1	≤473	≥67	≤0.40	≥95
8	OPGW-36B1.3-120-[145;73]	1/3.0/20AS＋5/2.9/20AS＋ 12/2.9/20AS, Optical Unit 1/2.8	36	≈120	14.6	≤820	≥145	≤0.77	≥73
9	OPGW-36B1.3-120-[95;98]	1/3.0/30AS＋5/2.9/30AS＋ 12/2.9/30AS, Optical Unit 1/2.8	36	≈120	14.6	≤700	≥95	≤0.55	≥98
10	OPGW-36B1.3-120-[74;110]	1/3.0/40AS＋5/2.9/40AS＋ 12/2.9/40AS, Optical Unit 1/2.8	36	≈120	14.6	≤582	≥74	≤0.42	≥110
11	OPGW-72B1.3-120-[147;76]	1/3.2/20AS＋4/3.0/20AS＋ 12/3.0/20AS, Optical Unit 2/2.9	72	≈120	15.2	≤832	≥147	≤0.76	≥76
12	OPGW-72B1.3-120-2[96;101]	1/3.2/30AS＋4/3.0/30AS＋ 12/3.0/30AS, Optical Unit 2/2.9	72	≈120	15.2	≤711	≥96	≤0.53	≥101
13	OPGW-72B1.3-120-[74;114]	1/3.2/40AS＋4/3.0/40AS＋ 12/3.0/40AS, Optical Unit 2/2.9	72	≈120	15.2	≤591	≥74	≤0.40	≥114
14	OPGW-36B1.3-130-[155;85]	1/3.2/20AS＋5/3.0/20AS＋ 12/3.0/20AS, Optical Unit 1/2.9	36	≈130	15.2	≤879	≥155	≤0.72	≥85
15	OPGW-36B1.3-130-[102;114]	1/3.2/30AS＋5/3.0/30AS＋ 12/3.0/30AS, Optical Unit 1/2.9	36	≈130	15.2	≤751	≥102	≤0.50	≥114
16	OPGW-36B1.3-130-[79;137]	1/3.2/40AS＋5/3.0/40AS＋ 12/3.0/40AS, Optical Unit 1/2.9	36	≈130	15.2	≤624	≥79	≤0.40	≥137
17	OPGW-36B1.3-140-[175;100]	1/3.3/20AS＋5/3.2/20AS＋ 12/3.2/20AS, Optical Unit 1/3.1	36	≈140	16.1	≤995	≥175	≤0.65	≥100
18	OPGW-36B1.3-140-[115;140]	1/3.3/30AS＋5/3.2/30AS＋ 12/3.2/30AS, Optical Unit 1/3.1	36	≈140	16.1	≤850	≥115	≤0.45	≥140
19	OPGW-36B1.3-145-[86;170]	1/3.3/20AS＋5/3.2/20AS＋ 12/3.2/AA, Optical Unit 1/3.1	36	≈49 ≈96(AA)	16.1	≤611	≥86	≤0.31	≥170
20	OPGW-48B1.3-150-[182;123]	1/3.4/20AS＋5/3.3/20AS＋ 12/3.3/20AS, Optical Unit 1/3.2	48	≈150	16.6	≤1055	≥182	≤0.60	≥123
21	OPGW-48B1.3-150-[122;165]	1/3.4/30AS＋5/3.3/30AS＋ 12/3.3/30AS, Optical Unit 1/3.2	48	≈150	16.6	≤901	≥122	≤0.42	≥165
22	OPGW-48B1.3-150-[95;195]	1/3.4/40AS＋5/3.3/40AS＋ 12/3.3/40AS, Optical Unit 1/3.2	48	≈150	16.6	≤747	≥95	≤0.33	≥195
23	OPGW-72B1.3-150-[172;110]	1/3.4/20AS＋4/3.3/20AS＋ 12/3.3/20AS, Optical Unit 2/3.2	72	≈150	16.6	≤998	≥172	≤0.64	≥110
24	OPGW-72B1.3-150-[116;147]	1/3.4/30AS＋4/3.3/30AS＋ 12/3.3/30AS, Optical Unit 2/3.2	72	≈150	16.6	≤853	≥116	≤0.45	≥147
25	OPGW-48B1.3-170-[198;150]	1/3.6/20AS＋5/3.5/20AS＋ 12/3.5/20AS, Optical Unit 1/3.4	48	≈170	17.6	≤1190	≥198	≤0.54	≥150
26	OPGW-72B1.3-170-[199;156]	1/3.8/20AS＋4/3.6/20AS＋ 12/3.6/20AS, Optical Unit 2/3.5	72	≈170	18.2	≤1187	≥199	≤0.54	≥156
27	OPGW-48B1.3-180-[252;125]	1/3.8/14AS＋5/3.6/14AS＋ 12/3.6/14AS, Optical Unit 1/3.5	48	≈180	18.2	≤1372	≥252	≤0.72	≥125
28	OPGW-48B1.3-180-[211;175]	1/3.8/20AS＋5/3.6/20AS＋ 12/3.6/20AS, Optical Unit 1/3.5	48	≈180	18.2	≤1255	≥211	≤0.50	≥175
29	OPGW-48B1.3-180-[147;234]	1/3.8/30AS＋5/3.6/30AS＋ 12/3.6/30AS, Optical Unit 1/3.5	48	≈180	18.2	≤1071	≥147	≤0.35	≥234
30	OPGW-48B1.3-180-[113,262]	1/3.8/40AS＋5/3.6/40AS＋ 12/3.6/40AS, Optical Unit 1/3.5	48	≈180	18.2	≤888	≥113	≤0.28	≥262
31	OPGW-48B1.3-235-[268;243.4]	1/2.7/20AS＋4/2.5/20AS＋ 12/2.5/20AS+13/3.8/20AS, Optical Unit 1/3.5	48	≈235	20.3	≤1594	≥268	≤0.38	≥243.4

**Other optical fibre type and count, stranded wire are available oem request.

Mechanical and Environmental Test Characteristics

Item	Test Method	Requirements
Tension	IEC 60794-1-2-E1 Load: according to cable structure Sample length: no less than 10m, linked length no less than100m Duration time: 1min	40%RTS no additional fibre strain（0.01%）, no additional attenuation (0.03dB). 60%RTS        fibre        strain≤0.25%，additional        attenuation≤0.05dB (No additional attenuation after test).
Crush	IEC 60794-1-2-E3 Load: according to above table, three points Duration time: 10min	Additional attenuation at 1550nm ≤0.05dB/fibre; No damage to the elements
Water Penetration	IEC 60794-1-2-F5B Time : 1 hour Sample length: 0.5m Water height: 1m	No water leakage.
Temperature Cycling	IEC 60794-1-2-F1 Sample length: No less than 500m Temperature range: -40℃ to +65℃ Cycles:   2 Temperature cycling test dwell time: 12h	The change in attenuation coefficient shall be less than 0.1dB/km at 1550nm.

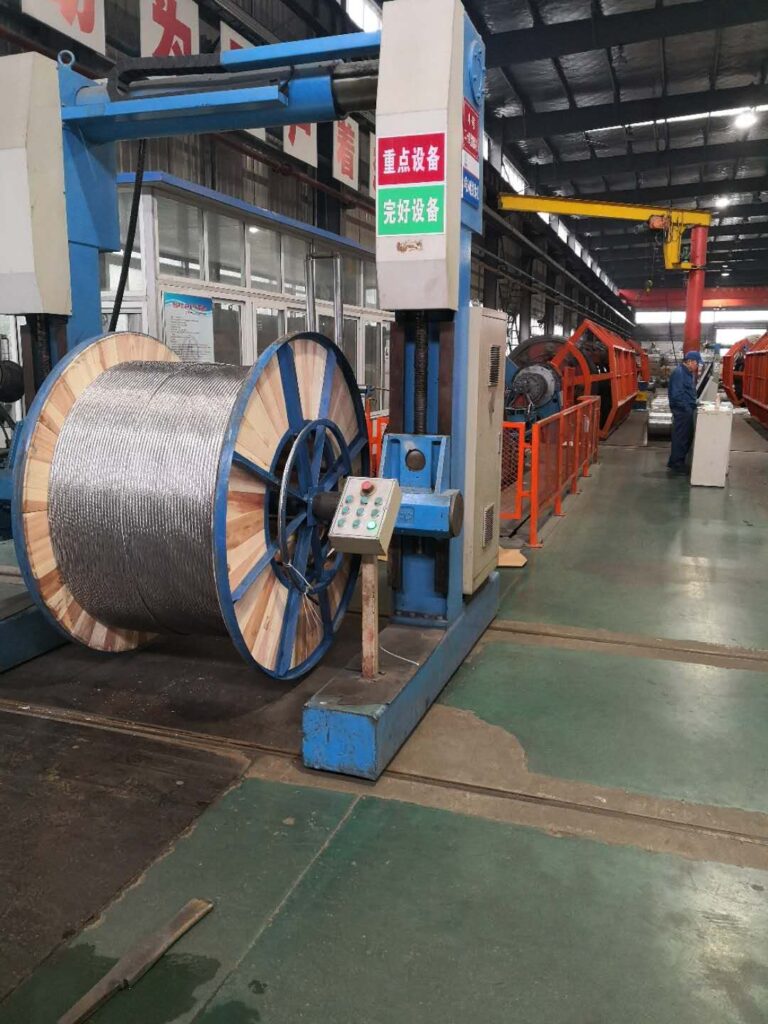

Packaging and Drum

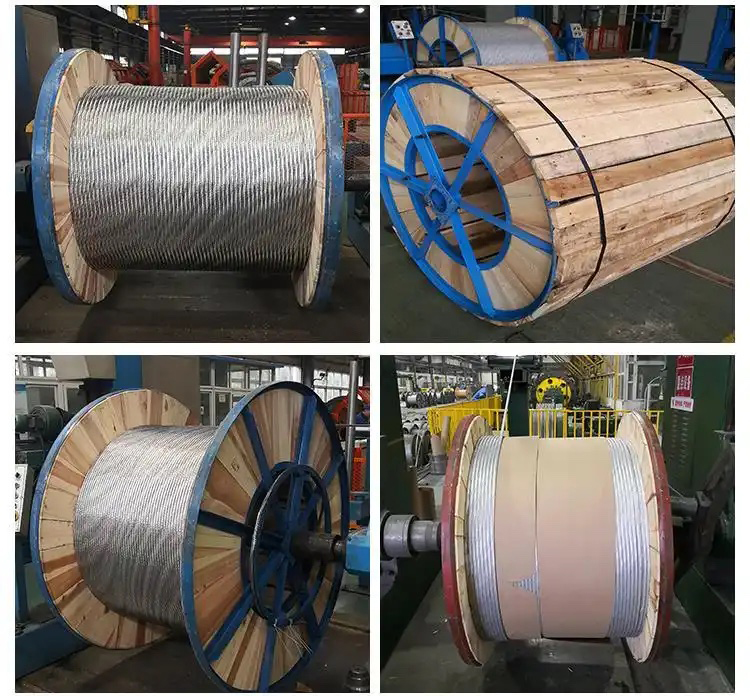

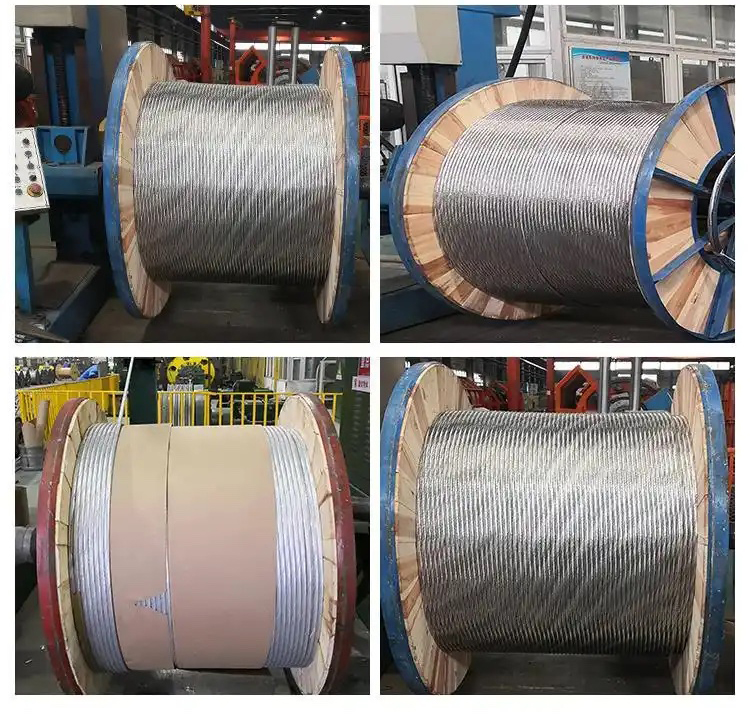

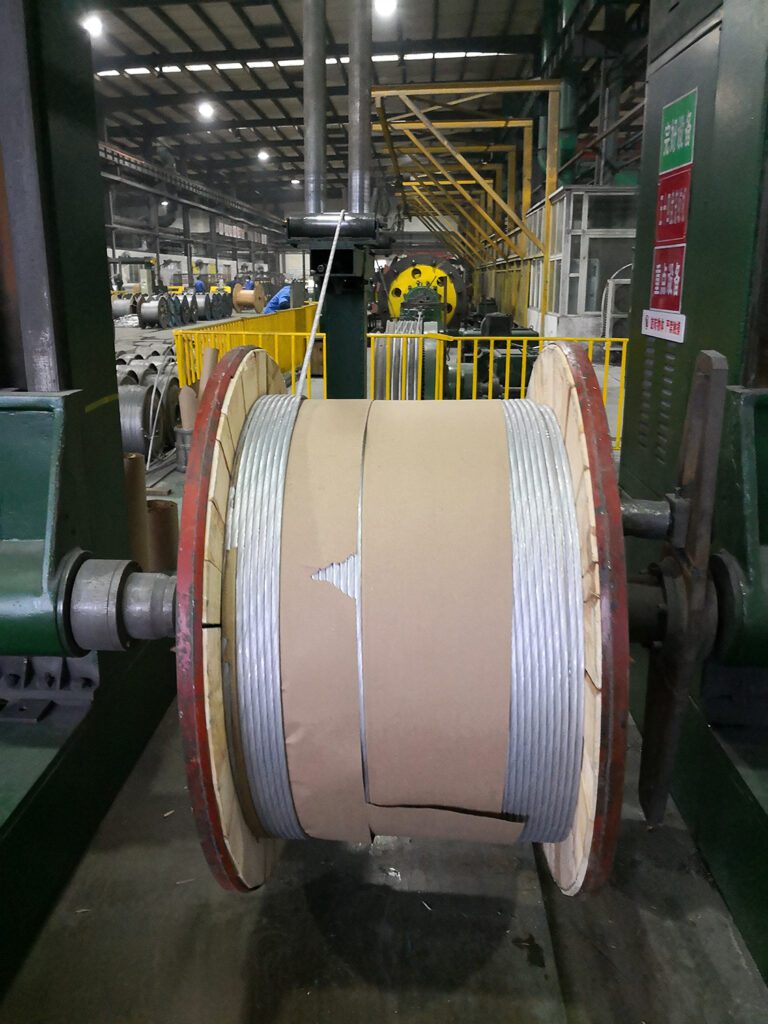

• Standard Cable Drum
• Standard reel length: 2/3km/reel, other length is also available
