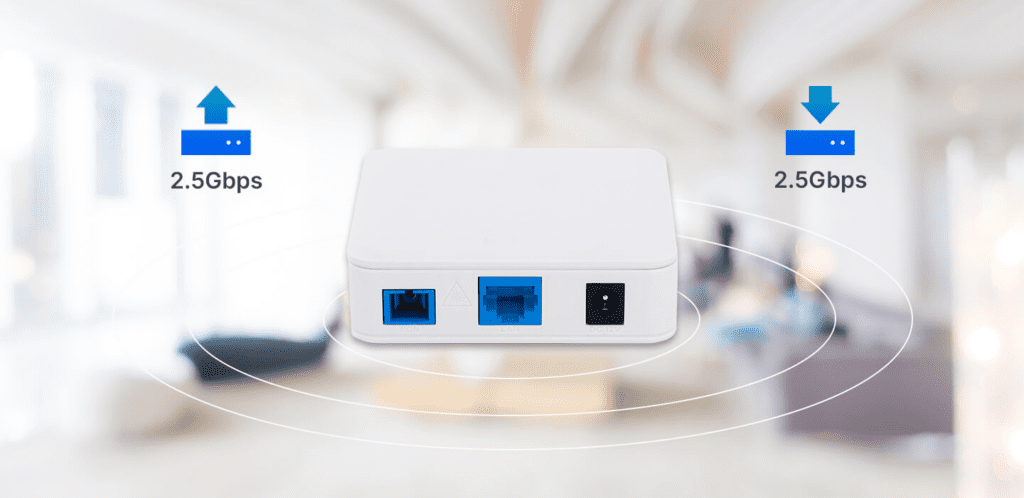

PNA V2801Q( XPON 2.5GbE ONU ) is specially designed to meet the needs of telecom operators for FTTO (office), FTTD (desktop), FTTH
(home), SOHO broadband access, video surveillance, etc. This ONU is based on a high-performance chip solution and has a 2.5GbE port,
which can provide users with a high-speed network experience and truly realize Gigabit to the desktop.
This ONT(ONU) has high reliability and can be applied to a wide temperature environment; and has a powerful firewall function, which is easy to
manage and maintain. It can provide QoS guarantee for different services. The ONT complies with international technical standards such as
IEEE802.3ah and ITU-T G.984.
XPON Dual Mode | Prevent Rogue ONT(ONU) | Wide Temp Design | Security ONT(ONU)
Support Bridge Mode & Router Mode
Long time stable connection
○ Hardware Parameter | |

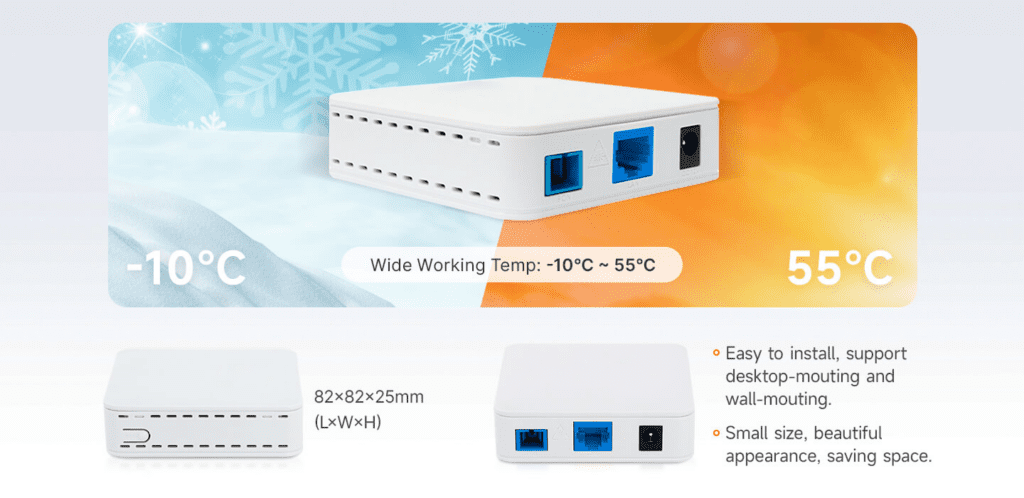

Dimension | 82mm×82mm×25mm(L×W×H) |
Net weight | NA |
Operating condition | Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensing) |
Storing condition | Storing temp: -40 ~ +70°C Storing humidity: 5~ 95% (non-condensing) |
Power adapter | DC 12V, 0.5A, external AC-DC power adaptor |
Power supply | ≤4W |
Interfaces | 2.5GbE |

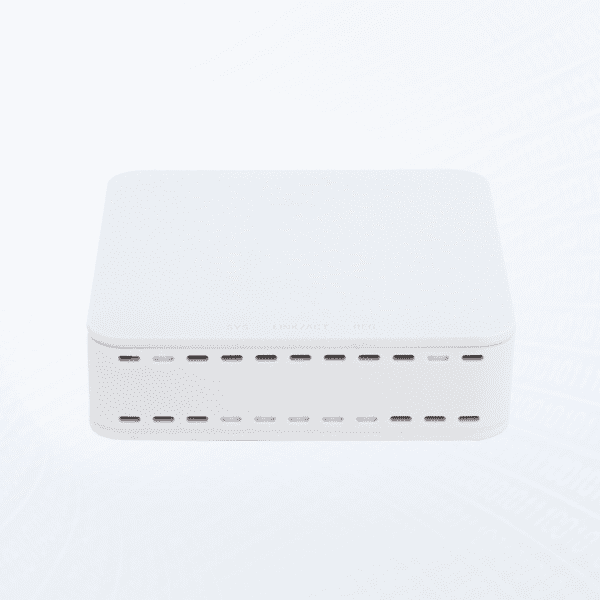

Indicators | SYS, LINK/ACT, REG |
○ Interface parameter | |
PON interface | 1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |

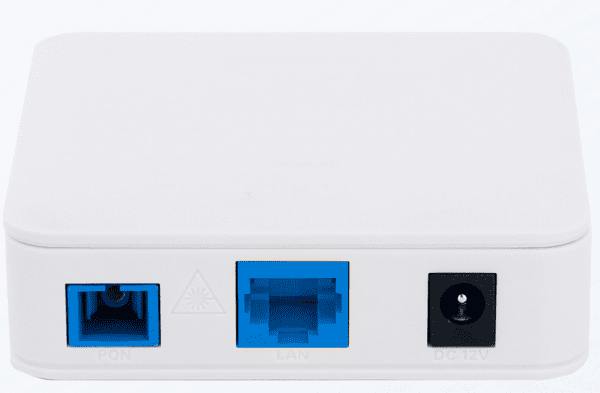

LAN interface | 1*2.5GbE, Auto-negotiation RJ45 connectors |
○ Function Data | |
XPON Mode | Dual mode,Auto-access to EPON/GPON OLT |
Uplink Mode | Bridging and Routing Mode |
Abnormal protection | Detecting Rogue ONU, Hardware Dying Gasp |

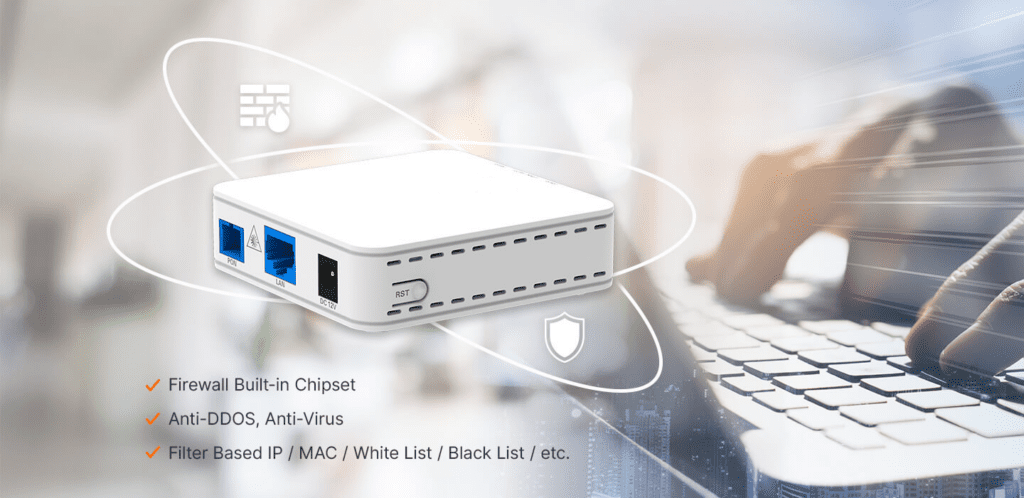

Firewall | DDOS, Filtering Based on ACL/MAC/URL |
○ Product Feature | |
Basic
| Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration, and auto firmware upgrade Support SN/Psw/Loid/Loid+Psw authentication |
Alarm | Support Dying Gasp Support Port Loop Detect Support Eth Port Los |
LAN | Support Port rate limiting Support Loop detection Support Flow control Support Storm control |
VLAN
| Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(≤8 vlans) |
Multicast | Support IGMPv1/v2/Snooping Max Multicast vlan 8 Max Multicast Group 64 |
QOS | Support 4 queues Support SP and WRR Support 802.1P |
L3 | Support IPv4/IPv6 Support DHCP/PPPOE/Static IP Support Static route Support NAT |
Management
| Support CTC OAM 2.0 and 2.1 Support ITUT984.x OMCI Support WEB Support TR069 Support TELNET Support CLI |
