Leveraged the latest WiFi 6(AX3000) technology and equipped with IEEE 802.3av(10G-EPON)/ITU-T G.987(XG-PON)/ITU-T G.9807.1 (XGS-PON) PON interface and IEEE802.11ax(WiFi 6) interface, ONT supports the full Triple Play of services enabling Data, Voice and Video services through Ethernet, Wi-Fi, FXS and USB standard interfaces, help Internet Service Providers to deliver internet service more than 2.5Gbps which is limited by GPON.
ONT built-in Ethernet LAN ports, one 2.5GE BASE-T port and 3x1GE BASE-T ports support ultrafast device connection, and includes powerful and enhanced WLAN interface based on MU-MIMO OFDMA 2×2 2.4GHz MIMO and 5Ghz 2×2 MIMO Wi-Fi antennas supporting 802.11a/b/g/n/ac/ax standards over 2.4GHz and 5GHz wireless frequency bands for Internet application such as video, email, web surfing, files upload/download and online gaming，and it provides VoIP service through POTS port.
| O&M | WEB/TELNET/OAM/OMCI/TR069 |
| Internet connection | Support Bridge/Router mode |
| Multicast | IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping |
| VoIP | SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909 |
| WIFI | Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz WiFi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band |
| L2 | 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
| PON Interface | SC single mode, SC/UPC connector TX optical power: 6dBm(XGS-PON), 5dBm(XG-PON), 4dBm(10G EPON) RX sensitivity: -28dBm Overload optical power: -8dBm Transmission distance: 20km Wavelength: 10G EPON: DS 1577nm/US 1310nm XG(S)-PON:DS 1577nm/US 1270nm |
| 10G PON layer | IEEE 802.3av(10G-EPON) ITU-T G.987(XG-PON) ITU-T G.9807.1 (XGS-PON) |

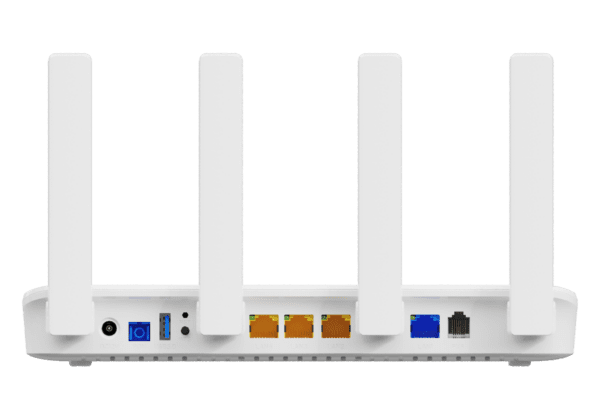

| User interface | 1*2.5GE, Auto-negotiation,RJ45 ports 3*GE, Auto-negotiation,RJ45 ports 1*POTS, RJ11 Connector 1*USB3.0 |
| Antenna | 2*4dBi （2.4GHz） 2*5dBi（5GHz） external antennas |
| USB | 1×USB 3.0 (Can connect to USB disk and support FTP service) |
This 10G XGSPON ONU is a cutting-edge Optical Network Unit designed for modern optical fiber communication networks. Fully compliant with international standards including ITU-T G.9807.1 (XGS-PON), this powerful device delivers exceptional performance for both residential and business users.
Featuring 1 x 10GE port alongside 4 x 1GE RJ-45 ports, the ONU-10XGS-1004-10G provides ultra-fast connection speeds to meet today’s demanding bandwidth requirements. The included USB3.0 port enables convenient network storage sharing capabilities, enhancing its versatility.

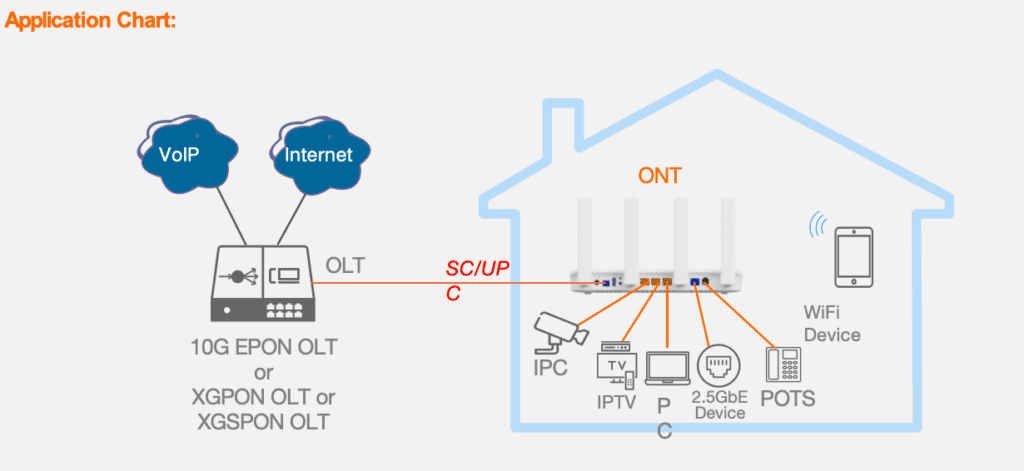

Users experience dramatically faster internet access with significantly reduced latency, making this ONU ideal for multiple deployment scenarios including FTTO (office), FTTD (desktop), FTTH (home), and SOHO broadband installations. The device perfectly supports bandwidth-intensive applications such as 4K/8K streaming, virtual reality, and high-definition video surveillance systems.
Built on reliable XGPON technology, the 10G XGSPON ONU offers exceptional stability with straightforward maintenance requirements. Its sophisticated QoS features ensure optimized performance across different services, providing the perfect foundation for next-generation connectivity solutions.
The PNA 10G XGSPON ONU offers a solution for providing high-speed and long-distance coverage. The AirLive XGS-PON AX supports full Triple Play of services enabling Data, Voice and Video services through Ethernet, and USB standard interfaces, help Internet Service Providers to deliver internet service speeds of more than 2.5Gbps which is limited by GPON. Triple play service applications such as HDTV, IPTV, and multimedia, enabling fast and reliable data transmission. With a large range between equipment nodes, the PNA 10G XGSPON ONU is a cost-effective access technology that offers flexibility for network deployment. Its reliable and scalable network ensures a seamless and efficient experience for users.
